International 733 cumpărați folosit (9.673)

Condiție: necesită reparații (utilizat), Anul fabricației: 2017, Funcționalitate: nefuncțional, număr mașină/vehicul: P177ZG753, Technical characteristics: # Machining Workspace: X 500 mm; Y 400 mm; Z 330mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1axel of rotation table A index divider head with direct measuring sistem angular with no of rev. 50minˉ¹ , precision +/- 5" # Axis A swivel : +/-170˚ # Max. dimension clamping / part : 650 x 400 mm; weight max 300 Kg # Rapid speed : X/Y/Z 54 m/min , # Spindle speed 100-10000 rpm ,Spindle motor power 11 kW # Spindle nose: BBT30 (with internal refrigeration) # Automatic tool changer 1x21 tools / chip to chip medium 1.5 sec # Tool max. Ø40 mm / long. Max.200 mm / 2 kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 20 kVA / 22A Dimensions # installation space : aprox. 1.65 x 3.2 (with chips conveyor) x 2.8 m # weight : aprox 8500 kg Equipment consist of: # This 4-axis FANUC Robodrill α-D21LiB5 was manufactured in 2016. Ideal for precision machining, this vertical machining center offers robust performance and reliability # CNC control : Model 31i model b5 # 4 axel and pinola : Fanuc DDR-TiB 178DU039 2017/08 and TSUDAKOMA PINOLA # CHIPS EXTRACTOR & COOLANT FILTRATION UNIT max 40 bar : Mosnic model 1641/2010 Lhodsxxt Ehspfx Ah Djp # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : Bristol model : B 1000 EF # Antifire : Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Automatization : lateral door automatic and interface ready for automatization # Control in process: Renishaw TRS2 # Documentation: not complete Machine status : NOT WORKING # Hidraulic unit broken # Emulsion pumps 2 x # Oiling pump for guides # Safety switch Euchner

Condiție: aproape ca nou (folosit), Funcționalitate: complet funcțional, WP WENDELMIXER UC 80 Malaxor spiral cu manipulare delicată a aluatului în timpul ciclului de frământare Foarte ușor de controlat printr-un panou de comandă analogic montat pe lateralul utilajului Capacitate: 80 kg făină sau 160 kg aluat Lsdpfx Aoxwxwmsh Dehp Include în total 5 boluri detașabile Complet recondiționat Asistență la transport

Condiție: bun (utilizat), Anul fabricației: 1995, Funcționalitate: complet funcțional, număr mașină/vehicul: 620571, canale de culoare: 2, HEIDELBERG SM 74-2-P 1/1 ; 2/0 74x52cm Lodpfx Aowtyfgsh Dshp Alcolor dampening Autoplate Plate Punch/Bender In production Good working conditions

Condiție: aproape ca nou (folosit), Anul fabricației: 2022, Funcționalitate: complet funcțional, viteza de avans pe axa X: 6 m/min, lăţime de lucru: 80 mm, lungime totală: 6.000 mm, înălțime totală: 2.500 mm, lățime totală: 3.000 mm, tensiune de intrare: 400 V, capacitate de aspirare: 14.000 m³/h, anul ultimei revizii majore: 2025, frecvență de intrare: 50 Hz, putere: 18 kW (24,47 CP), FOR SALE – CEFLA MITO 2P AUTOMATIC SPRAYING MACHINE (2022) Condition: Semi-new, fully equipped, ready for production Cefla MITO 2P automatic spraying machine, year 2022, in excellent condition and lightly used. The system is delivered as a complete turn-key finishing line, including plenum, ducting, exhaust system, and an external inverter upgrade for optimized airflow control. Price: EUR 159,000 (negotiable) Location: Focsani, Romania Loading assistance available. International transport can be arranged. ----- TECHNICAL SPECIFICATION – CEFLA MITO 2P (2022) Automatic Reciprocating Spraying Machine – Continuous Paper Belt Version ----- Machine Type: MITO 2P Application: Automatic coating of MDF fronts, flat panels, furniture components Spray System: Dual reciprocating arms (2P) with electronic stroke optimization Reading System: Automatic piece-detection scanner for precise spray width control Conveyor System: •⁠ ⁠Continuous paper roll belt (clean working surface, fast replacement) •⁠ ⁠Conveyor speed: 2–6 m/min, adjustable •⁠ ⁠Anti-overspray zone with paint recovery design Working Capacity: •⁠ ⁠Maximum working width: 1300 mm •⁠ ⁠Maximum panel thickness: 80 mm •⁠ ⁠Uniform pressurized spray area Lhodpjxv U Ufsfx Ah Dep •⁠ ⁠High transfer efficiency on matt or gloss coatings Ventilation & Filtration: •⁠ ⁠Dedicated pressurized plenum chamber •⁠ ⁠Full industrial ventilation group included •⁠ ⁠External inverter upgrade (EUR 3,000) for adjustable airflow and low turbulence •⁠ ⁠Multi-stage filtration: - Pre-filters - High-efficiency paint-stop filters •⁠ ⁠Exhausting capacity: 10,000–14,000 m³/h (depending on installed fan) •⁠ ⁠Balanced airflow for consistent coating thickness Spray Arms: •⁠ ⁠2 servo-controlled reciprocating arms •⁠ ⁠Compatible with air-mix, airless, HVLP spray guns •⁠ ⁠Quick-change gun holders •⁠ ⁠Automatic modulation of arm speed and stroke based on panel geometry Dimensions & Electrical: •⁠ ⁠Machine length: approx. 5100–6000 mm •⁠ ⁠Width: approx. 2700–3000 mm •⁠ ⁠Height: approx. 2500–2600 mm •⁠ ⁠Installed electrical power: 18–25 kW •⁠ ⁠Voltage: 400 V / 50 Hz / 3 Ph Automation & Control: •⁠ ⁠Touchscreen control panel (Cefla interface) •⁠ ⁠Integrated diagnostics and system monitoring •⁠ ⁠Automatic belt cleaning cycle •⁠ ⁠Quick-start coating programs •⁠ ⁠Energy-saving standby mode Performance: •⁠ ⁠High repeatability and stable film thickness •⁠ ⁠Optimized material usage with reduced overspray •⁠ ⁠Consistent results on water-based and solvent-based coatings •⁠ ⁠Suitable for primers, sealers, matt paints, pigmented coatings ----- Machine can be tested in operation upon request.

Condiție: necesită reparații (utilizat), Anul fabricației: 2015, Funcționalitate: nefuncțional, număr mașină/vehicul: 2460039, Technical characteristics: # Machining Workspace: X 300 mm; Y 500(725) mm; Z 375mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1 axel of rotation table A index divider head with direct measuring system angular with no of rev. 50minˉ¹ , precision +/- 5" # Max. dimension clamping / part : Ø 575 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 65/75/75 m/min , Position precision Tp : 0.008 mm # Distance between spindles: 300 mm # Spindle speed 1-17500 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) # Automatic tool changer 2x32 tools / chip to chip medium 2.5 sec # Tool max. Ø75 mm / long. Max.275 mm / 7.5 kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 85 kVA / 125A Dimensions # installation space : aprox. 3.6 x 6 x 3.7 m # weight : aprox 10500 kg Equipment consist of: # CNC control : Siemens 840D SL # Liniar axis measuring device : Heindenhain liniar scales # CHIPS EXTRACTOR Knoll Type 550 K-1 # OIL COOLING SYSTEM # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL filtering system max 80 Bar : Knoll VRF450-2450 (!!! Can serve 2 machines at once) # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : IFS Vario E2000 (2000m3/H) # Antifire : Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Control in process: Marposs T25 # Control tool breakage system BRK and length checker: inductive sensor # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) Machine status : NOT WORKING # Sensors for spindle tool presence & part presence # Tool breack sensors # Tool magasine piston and slide sistem door open/close 2 units # Tool magasine pistons and slide sistem tool holding sistem - 2 units # Position Encoder A axis Lhsdpfx Ahsxxrnbj Dep # Inductive and magnetic sensors 4 units each # Chip extraction conveyor to be repaired # Chiller for cooling spindle/heat exchanger # Communication module Murr # Liniar scale X axis # Level sensor emulsion chip conveyor # Hydraulic pump # Motor for hydraulic pump (can be repaired) # Heat exchanger unit # Electric Siemens Contactors for electrical cabinet 3 units # Safety door lock Euchner # Emulsion filtration unit is shared with another machine (SW BA321 2460038)

Condiție: aproape ca nou (folosit), Funcționalitate: complet funcțional, WP CR-59 ROTUNJITOR CONIC - mașină pentru rotunjirea diverselor tipuri de aluat - cu ulei și aer cald - control al vitezei Lhodpfsxwxulox Ah Dsp - bandă de evacuare - cilindru/con con din fontă, teflonat - complet recondiționată

Condiție: necesită reparații (utilizat), Anul fabricației: 2015, Funcționalitate: nefuncțional, număr mașină/vehicul: 2460038, Technical characteristics: # Machining Workspace: X 300 mm; Y 500(725) mm; Z 375 mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1 axel of rotation table A index divider head with direct measuring system angular with no of rev. 50minˉ¹ , precision +/- 5" # Max. dimension clamping / part : Ø 575 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 65/75/75 m/min , Position precision Tp : 0.008 mm # Distance between spindles: 300 mm # Spindle speed 1-17500 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) # Automatic tool changer 2x32 tools / chip to chip medium 2.5 sec # Tool max. Ø75 mm / long. Max.275 mm / 7.5 kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 85 kVA / 125A Dimensions # installation space : aprox. 3.6 x 6 x 3.7 m # weight : aprox 10500 kg Equipment consist of: # CNC control : Siemens 840D SL # Liniar axis measuring device : Heindenhain liniar scales # CHIPS EXTRACTOR Knoll Type 550 K-1 # OIL COOLING SYSTEM # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : IFS Vario E2000 (2000m3/H) # Antifire : Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Control in process: Marposs T25 # Control tool breakage system BRK and length checker: inductive sensor # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT (spindle) Machine status : Lhjdpfx Ahoxxrc Ss Djp NOT WORKING # Sensors for spindle tool presence & part presence # Hydraulic pump # Level & temperature sensor Parker for hydraulic unit # Tool magasine piston and slide system door open/close 2 units # Communication module Murr # Position encoder A Axis # Hydraulic switch Parker 4 units # Emulsion filtration unit is shared with another machine (SW BA321 2460038) # High pressure pump from emulsion filtration system

Condiție: necesită reparații (utilizat), Anul fabricației: 2012, Funcționalitate: nefuncțional, număr mașină/vehicul: 2560001, Technical characteristics: Ledexxkd Uepfx Ah Dehp # Machining Workspace: X 600 mm; Y 525(890) mm; Z 400 mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1 axel of rotation table A and 2 axis of rotation C with index divider head with direct measuring system angular with no of rev. 50minˉ¹ , precision +/- 5" # Max. dimension clamping / part : Ø 600 x 1420 mm; weight max 600 Kg # Rapid speed : X/Y/Z 50/60/50 m/min , Position precision Tp : 0.02 mm # Distance between spindles: 600 mm # Spindle speed 1-6000 rpm # Spindle nose: DIN69893-HSK-A100 (with internal refrigeration) # Automatic tool changer 2x20 tools / chip to chip medium 4.25 sec # Tool max. Ø75 mm / long. Max.275 mm / 7.5 kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 85 kVA / 125A Dimensions # installation space W x H x L : aprox. 5.8 x 3.3x 5.05 m # weight : aprox 10500 kg Equipment consist of: # CNC control : Siemens 840D SL # Liniar axis measuring device : Heindenhain liniar scales # CHIPS EXTRACTOR Knoll Type 550 K-1 # OIL COOLING SYSTEM # OIL filtering system max 80 Bar : Knoll KF200/1200 # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL VAPOR ABSORPTION/RECOVERY SYSTEM # Control tool breakage length checker: Blum Novotec # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) Machine status : NOT WORKING # Automatic doors operator access # Tool magazine # Work place Axis protections # Z axis ballscrew and # Z axis Sliding patinas # hydraulic overheating # Hydraulic pump (250 bar)

Condiție: folosit, Anul fabricației: 2009, Funcționalitate: funcționalitate restrânsă, număr mașină/vehicul: B-8023, Technical characteristics: # Machining Workspace: X 800 mm; Y 400 mm; Height from table surface to floor: 850 mm (max load 450 Kg) # Nº of T.Slots:3/Distance between T.Slots: 125 mm/Width of T.Slots: 18 mm # Axis description: 3 LINIAR AXIS(X,Y,Z) +2 twin horizontal spindles + 4 th Axis # Rapid speed : X,Y,Z - 30m/min # Work travel : Longitudinal travel (x-axis) 600 mm,Cross Travel (y-axis) 400 mm,Vertical Travel (z-axis) 510 mm Headstock capabilities: # Spindles distance : 200 mm # Max. distance from spindle to table 650 mm # Spindle nose: ISO7388 (with internal refrigeration),Tool Holder (Size 40) # Speed range (standard)100/8000,Maximum torque / at 330 rpm,85 Nm ,7.5 kw Automatic tool changer: # Number of tools :20 ,Selection system:Sequential-/random,Max. diameter (adjacent tool)85 mm, Max. diameter ( non adjacent tool ) 135 mm,Max. tool length 250 mm,Max. tool weight 6.5 Kg,Time to change tool 6 sg. Time to change tool 3sg. Electrical connection: Ljdpoxxi Sksfx Ah Dehp # tension: 3x400V/50Hz # Power installed: aprox 30 kVA Dimensions # floor space required : aprox. L 2.1 x l 3.5 x H 3m # weight : aprox 4200 kg Equipment consist of: # CNC control GE Fanuc Series 31i MODEL A # 4th axis : Nikken CNC180 FA (2012) # broken tool detection system : BlumNovotec # CHIPS EXTRACTOR # LUBRICATION SYSTEM # COOLING SYSTEM ELECTRICAL PANEL, # SPINDLE COOLING SYSTEM : HARBOR Model:HBO-750PTSB2 # Documentation : Electronic available / Book available Machine status : WORKING - with 1 spindle / 2nd spindle broken - can be repaired.

Condiție: necesită reparații (utilizat), Anul fabricației: 2007, Funcționalitate: nefuncțional, număr mașină/vehicul: 191-89, Technical characteristics: # Machining Workspace: X 550 mm; Y 400 mm; Z 360 mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1axel of rotation table A and 2 axis of rotation B with index divider head with direct measuring system angular with no of rev. 50 minˉ¹ , precision +/- 5" # Axis A swivel : +/-110˚ Lhodpjxxi Rmjfx Ah Dop # Max. dimension clamping / part : Ø 247 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 40/40/40 m/min , # Distance between Divider heads B1/B2 : 250 mm # Spindle speed 1-10000 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) # Automatic tool changer 1x48 tools / chip to chip medium 2.5 sec # Tool max. Ø82 mm / long. Max.250 mm / 5kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 45 kVA / 80A Dimensions # installation space : aprox. 4.4 x 2.3 x 3.1 m # weight : aprox 8500 kg Equipment consist of: # CNC control : Siemens 840D Power line # CHIPS EXTRACTOR Spring Knoll # OIL COOLING SYSTEM # OIL filtering system max 80 Bar : Knoll HL 450/1200 # SHAFT COOLING SYSTEM, GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : LTA # Antifire : Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Control in process: Marposs T25 # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) # Documentation: not complete Machine status : NOT WORKING # Motor for hydraulic unit burn out

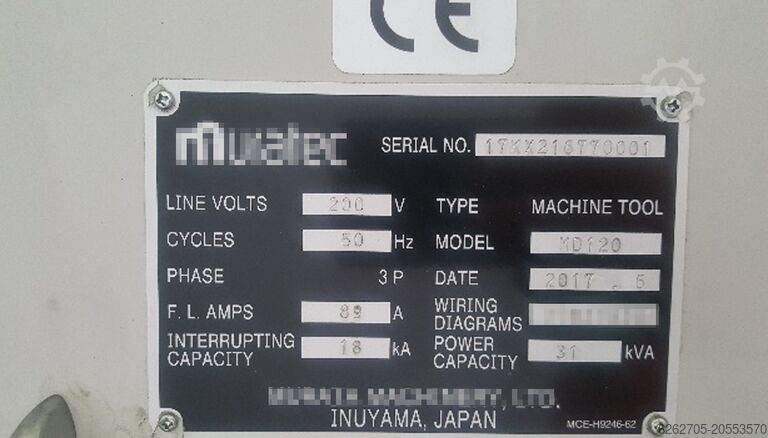

Condiție: folosit, Anul fabricației: 2017, Funcționalitate: complet funcțional, număr mașină/vehicul: 17KX216770001, Technical characteristics: Work Area # Maximum turning diameter: 230 mm (with loader 120 mm) # Maximum machining diameter: 200 mm # Maximum workpiece length: 145 mm (with loader 75 mm) # X1/X2 - axis travel distance: 130 mm / Rapid speed in X: 24 m/min # Z1/Z2 -axis travel distance: 145 mm / Rapid speed in Z: 24 m/min # Y1/Y2-Axis travel distance: +/-40mm / Rapid speed in Z: 12 m/min Automation: # Axis Stroke: X - Left 200 mm / Right 1600 mm ; Y - 550 mm ; Z - 155 ; α 180˚ # Max speeds m/min : X - 160 ; Y - 120 ; Z - 35 mm ; α 180˚/1sec # Specification of load / unload grippers (air pressure powered) : outer diameter - Ø90; jaw stroke 30 mm ; gripping force : outside 128 kgf / inside 138 kgf Main Spindle # Spindle size : Standard (6 / 8 inches)/165 mm/205 mm # Maximum speed: Left & right 45-4500 rpm # Power with 100% ED : Left -15 kW / Right 7.5 kW Tool Holder with Motorized Tools # Tool Interface: BMT55 # Number of position : 12right / 12left-station disc turret, all driven positions # Maximum speed: max 4000 rpm, Milling motor power : 4.5 kW Electrical Equipment Lhodpfx Ahoxxi Ncj Djp # Operating voltage: 200Vx3, fusible 151A # Connection power: 31 kVA Dimensions # Machine Dimensions (L×W×H): 3950 ×2715× 2800 mm # Weight : 4400 Kg Main Features and Capabilities: # horizontal Design: Optimal chip evacuation, loading/unloading by gantry from conveyors # Automation consist of : Gantry robot + 2 loading unloading conveyors # CNC Control: Fanuc FS31i Model A Series # Chip extraction conveyor # Coolant filtration 40 bar max: Micron Filter, model Evotech 500PRO # Coolant cooling: T exa TCW55PMSBCDX00 sn165373 # Control in process: Marposs T25 # Broken tool detection system: Peek tool menu Murata/Fanuc feature activated # Documentation : Electronic available / Book available Machine status : WORKING

Condiție: necesită reparații (utilizat), Anul fabricației: 2009, Funcționalitate: nefuncțional, număr mașină/vehicul: B-8024, Technical characteristics: # Machining Workspace: X 800 mm; Y 400 mm; Height from table surface to floor:850 mm (max load 450 Kg) # Nº of T.Slots:3/Distance between T.Slots: 125mm /Width of T.Slots: 18mm # Axis description: 3 LINIAR AXIS(X,Y,Z) +2 twin horizontal spindles + 4 th Axis # Rapid speed : X,Y,Z - 30m/min # Work travel : Longitudinal travel (x-axis) 600 mm,Cross Travel (y-axis) 400 mm,Vertical Travel (z-axis) 510 mm Headstock capabilities: # Spindles distance : 200 mm # Max. distance from spindle to table 650 mm # Spindle nose: ISO7388 (with internal refrigeration),Tool Holder (Size 40) # Speed range (standard)100/8000,Maximum torque / at 330 rpm,85 Nm ,7.5 kw Automatic tool changer: Lhsdpfxexxi Ewe Ah Djp # Number of tools :20 ,Selection system:Sequential-/random,Max. diameter (adjacent tool)85 mm, Max. diameter ( non adjacent tool ) 135 mm, Max. tool length 250 mm,Max. tool weight 6.5Kg, Time to change tool 3sg. Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 30 kVA Dimensions # floor space required : aprox.L 2.1 x l 3.5 x H 3m # weight : aprox 4200 kg Equipment consist of: # CNC control GE Fanuc Series 31i MODEL A # CHIPS EXTRACTOR # LUBRICATION SYSTEM # COOLING SYSTEM ELECTRICAL PANEL, # SPINDLE COOLING SYSTEM : HARBOR Model:HBO-750PTSB2 # Documentation : Electronic available / Book available Machine status : NOT WORKING # Motor Y axis broken - to be replaced - not repairable # Tool exchanger 2 units broken - to be replaced - not repairable # Spindles broken - to be replaced - not repairable # Hydraulic group broken - to be replaced or repaired

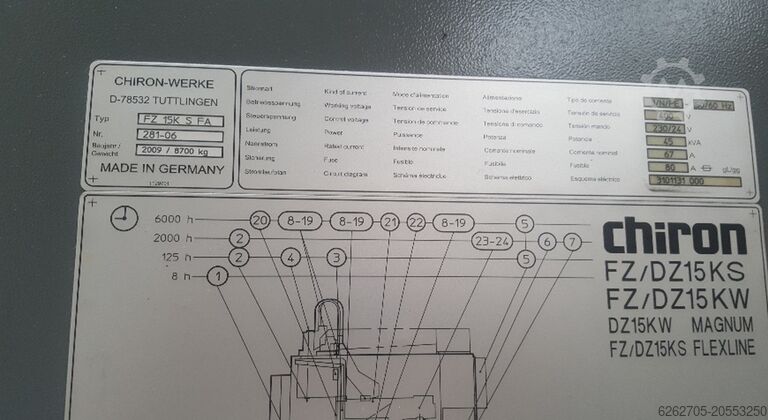

Condiție: necesită reparații (utilizat), Anul fabricației: 2009, Funcționalitate: nefuncțional, număr mașină/vehicul: 281-06, Technical characteristics: # Machining Workspace: X 550 mm; Y 400 mm; Z 360 mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1 axel of rotation table A and 2 axis of rotation B with index divider head with direct measuring system angular with no of rev. 50minˉ¹ , precision +/- 5" # Axis A swivel : +/-110˚ # Max. dimension clamping / part : Ø 247 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 40/40/40 m/min , # Distance between Divider heads B1/B2 : 250 mm # Spindle speed 1-10000 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) # Automatic tool changer 1x48 tools / chip to chip medium 2.5 sec # Tool max. Ø82 mm / long. Max.250 mm / 5kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 45 kVA / 80A Dimensions # installation space : aprox. 4.4 x 2.3 x 3.1 m # weight : aprox 8500 kg Equipment consist of: Ledpfx Aexxivceh Dehp # CNC control : Siemens 840D Power line # CHIPS EXTRACTOR Spring Knoll # OIL COOLING SYSTEM # OIL filtering system max 80 Bar : Knoll HL 450/1200 # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : LTA AC3002 # Antifire : Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Control in process: Marposs T25 # Control tool breakage : Blum Novotech # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) # Documentation: not complete Machine status : NOT WORKING # door for tool magazine # tool magazine presence sensor (BERU)

Condiție: folosit, Anul fabricației: 2017, Funcționalitate: complet funcțional, număr mașină/vehicul: 109239, Technical characteristics: Work Area # Chuck diameter: 260 mm # Weight max. : 150 Kg # Swing diameter: 280 mm # Workpiece dia. / height max.: 200/200 mm # X stroke(working stroke): 760 mm / Rapid speed in X: 60 m/min / feed force 6.9 kN Lhedpsxxir Djfx Ah Dep # Z stroke: 415 mm / Rapid speed in Z: 30 m/min / feed force 18.7 kN # Loading time : 5÷6 sec # Standard closed automation (number of loading nests with a workpiece diameter ,14/(80...200),18/(30...160), 30/(30...85)) Main Spindle # Spindle according to DIN 55026: Size 6 # Maximum speed: 4500 rpm # Power with 100 / 40% duty cycle: 25 / 18 kW # Torque with 100 / 40% duty cycle: 280 / 200 Nm Tool Holder with Motorized Tools # Cylindrical shank supports according to DIN 69880: 12 - BMT65 # Number of position : 12 # Maximum tool length including holder: 200 mm # Maximum speed: 6000 rpm # Maximum torque at 10% duty cycle: 27 Nm,100% duty cycle: 14 Nm Electrical Equipment # Operating voltage: 400 - 480 V ,100 A # Connection power: 36 kVA Dimensions # Total dimensions: Length=5300 with chip extractor,Wide=2300 mm,Height=3650 mm # Weight : 9000 Kg Main Features and Capabilities: # Vertical Design: Optimal chip evacuation and easy loading/unloading. # Control: GE Fanuc FS 32i B. # High Precision: Positioning accuracy in X,Z axes is ±0.001 mm Heidenhain liniar scales # Main Spindle: High power and wide speed range. # Control in process: Measuring probe Marposs T25 # Automated Loading/Unloading: Emag O-Type Parts are fed to and removed from the machine via integrated automation. # Live Tools: The possibility of using live tools extends the machining range to include drilling and milling. # Tool life time monitoring with sister tool management # Chip conveyor&coolant filtration unit Micron filter with ''paper filter'' with 40 Bar pumps(capable to filter 2 Machines) # Fully enclosed work area Light in working area # Documentation : Electronic available & Book not complete Machine status : WORKING

Condiție: necesită reparații (utilizat), Anul fabricației: 2007, Funcționalitate: nefuncțional, număr mașină/vehicul: 191-88, Technical characteristics: # Machining Workspace: X 550 mm; Y 400 mm; Z 360 mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1 axel of rotation table A and 2 axis of rotation B with index divider head with direct measuring system angular with no of rev. 50minˉ¹ , precision +/- 5" # Axis A swivel : +/-110˚ # Max. dimension clamping / part : Ø 247 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 40/40/40 m/min , # Distance between Divider heads B1/B2 : 250 mm # Spindle speed 1-10000 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) # Automatic tool changer 1x48 tools / chip to chip medium 2.5 sec # Tool max.Ø82 mm / long. Max.250 mm / 5kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 45 kVA / 80A Dimensions # installation space : aprox. 4.4 x 2.3 x 3.1 m # weight : aprox 8500 kg Equipment consist of: # CNC control : Siemens 840D Power line # CHIPS EXTRACTOR Spring Knoll # OIL COOLING SYSTEM # OIL filtering system max 80 Bar : Knoll HL 450/1200 # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : LTA AC3002 # Antifire : Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Control in process: Marposs T25 # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) # Documentation: not complete Machine status : NOT WORKING # Operator protection display broken - Operator panel working # Tool Magazine chain # Ballbar X # Ballbar Y # Pullbar spindle # Driver power source X # Driver power source Y # General power source drivers Ljdpjxw Uplsfx Ah Djhp # Complete hyddraulic unit broken

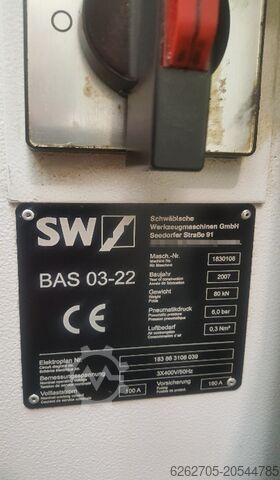

Condiție: necesită reparații (utilizat), Anul fabricației: 2007, Funcționalitate: nefuncțional, număr mașină/vehicul: 1830108, Technical characteristics: # Machining Workspace: X 300 mm; Y 650 mm; Z 400 mm # Axis description: 3 LINIAR AXIS (X,Y,Z) +1 axel of swivel table A360 [degrees] indexable divider head (resolution 0.001˚) # Number of pallets : 2 Max . Table load 400 Kg # Max. dimension clamping / part : Ø 575 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 75/75/75 m/min , Position precision Tp : 0.008 mm # Number of spindles : 2 / with distance between spindles: 300 mm # Spindle speed 1-10000 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) Lhsdpfx Aexw Ukvoh Dsp # Automatic tool changer 2x32 tools / chip to chip medium 2.5 sec # Tool max. Ø75 mm / long. Max.275 mm / 7.5 kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 70 kVA / 125A Dimensions # installation space : aprox. 3.9 x 3.2 x 3.1 m # weight : aprox 10500 kg Equipment consist of: # CNC control : Fanuc 30i-Model A # Liniar axis measuring device : Heindenhain liniar scales # CHIPS EXTRACTOR Knoll Type 550 K-1 # OIL COOLING SYSTEM # OIL filtering system max 40 Bar : Knoll AE 1060 # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # Part presence P/Y : with low pressure air detectors # Broken tool detection : Blum Novotec Laser Light probe # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) Machine status : NOT WORKING # Magasine chain broken - NEED TO BE REPLACED

Condiție: folosit, Anul fabricației: 2016, Funcționalitate: complet funcțional, număr mașină/vehicul: 2460065, Technical characteristics: Lhsdpexw Ttijfx Ah Dop # Machining Workspace: X 300 mm; Y 500(725) mm; Z 375 mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1 axel of rotation table A and 2 axis of rotation B with index divider head with direct measuring system angular with no of rev. 50minˉ¹ , precision +/- 5" # Max. dimension clamping / part : Ø 575 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 65/75/75 m/min , Position precision Tp : 0.008 mm # Distance between spindles: 300 mm # Spindle speed 1-17500 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) # Automatic tool changer 2x32 tools / chip to chip medium 2.5 sec # Tool max. Ø75 mm / long. Max.275 mm / 7.5 kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 85 kVA / 125A Dimensions # installation space : aprox. 3.6 x 6 x 3.7 m # weight : aprox 10500 kg Equipment consist of: # CNC control : Siemens 840D SL # Liniar axis measuring device : Heindenhain liniar scales # CHIPS EXTRACTOR Knoll Type 550 K-1 # OIL COOLING SYSTEM # OIL filtering system max 80 Bar : Knoll 550 K-1 450_2450 (!!! Can serve 2 machines at once) # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : IFS Vario E2000 (2000m3/H) # Antifire : Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Control in process: Marposs T25 # Control tool breakage system BRK and length checker: inductive sensor # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) # Documentation: Only books available Machine status : WORKING

Condiție: folosit, Anul fabricației: 2010, Funcționalitate: complet funcțional, număr mașină/vehicul: B-8044, Technical characteristics: # Machining Workspace: X 800 mm; Y 400 mm; Height from table surface to floor:850 mm (max load 450 Kg) # Nº of T.Slots:3/Distance between T. Slots: 125 mm/Width of T. Slots: 18 mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 4 th Axis # Rapid speed : X,Y,Z - 30m/min # Work travel : Longitudinal travel (x-axis) 600 mm,Cross Travel (y-axis) 400 mm,Vertical Travel (z-axis) 510 mm Headstock capabilities: # Max. distance from spindle to table 650 mm # Spindle nose: ISO 7388 (with internal refrigeration),Tool Holder (Size 40) # Speed range (standard)100/14000,Maximum torque / at 330 rpm,63.7/89.4 Nm Automatic tool changer: Lhedpfxexw Tqzs Ah Dsp # Number of tools :20 ,Selection system:Sequential-/random,Max. diameter (adjacent tool) 85 mm, Max. diameter ( non adjacent tool ) 135 mm,Max. tool length 300 mm,Max. tool weight 6.5 Kg,Time to change tool 6 sg. Time to change tool 3sg. Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 30 kVA Dimensions # floor space required : aprox. L 2.1 x l 3.5 x H 3m # weight : aprox 4200 kg Equipment consist of: # CNC control GE Fanuc Series 31i MODEL A # CHIPS EXTRACTOR # LUBRICATION SYSTEM # Emulsion''paper'' filtering system: Filber S.L. Model FTH5/10 200l/min # COOLING SYSTEM ELECTRICAL PANEL, # SPINDLE COOLING SYSTEM : HARBOR Model:HBO-750PTSB2 # Documentation : Electronic available / Book available Machine status : WORKING

Condiție: folosit, Anul fabricației: 2016, Funcționalitate: complet funcțional, număr mașină/vehicul: 2460062, Technical characteristics: # Machining Workspace: X 300 mm; Y 500(725) mm; Z 375 mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1 axel of rotation table A index divider head with direct measuring system angular with no of rev. 50 minˉ¹ , precision +/- 5" # Max. dimension clamping / part : Ø 575 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 65/75/75 m/min , Position precision Tp : 0.008 mm # Distance between spindles: 300 mm # Spindle speed 1-17500 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) # Automatic tool changer 2x32 tools / chip to chip medium 2.5 sec # Tool max. Ø75 mm / long. Max.275 mm / 7.5 kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 85 kVA / 125A Dimensions # installation space : aprox. 3.6 x 6 x 3.7 m # weight : aprox 10500 kg Equipment consist of: # CNC control : Siemens 840D SL # Liniar axis measuring device : Heindenhain liniar scales # CHIPS EXTRACTOR Knoll Type 550 K-1 # OIL COOLING SYSTEM # OIL filtering system max 80 Bar : Knoll VRF 450_2350 # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : IFS Vario E2000 (2000m3/H) # Antifire : Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Control in process: Marposs T25 # Control tool breakage system BRK and length checker: inductive sensor # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) Lhsdpfxjxw Syue Ah Dep Machine status : WORKING

Condiție: necesită reparații (utilizat), Anul fabricației: 2016, Funcționalitate: nefuncțional, număr mașină/vehicul: 2460061, Technical characteristics: # Machining Workspace: X 300 mm; Y 500(725) mm; Z 375 mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1 axel of rotation table A + indexable divider head with direct measuring system angular with no of rev. 50 minˉ¹ , precision +/- 5" # Max. dimension clamping / part : Ø 575 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 65/75/75 m/min , Position precision Tp : 0.008 mm # Distance between spindles: 300 mm # Spindle speed 1-17500 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) # Automatic tool changer 2x32 tools / chip to chip medium 2.5 sec # Tool max. Ø75 mm / long. Max.275 mm / 7.5 kg Electrical connection: # tension: 3x400V/50Hz Lhsdpfx Aexw R Udoh Dep # Power installed: aprox 85 kVA / 125A Dimensions # instalaltion space : aprox. 3.6 x 6 x 3.7 m # weight : aprox 10500 kg Equipment consist of: # CNC control : Siemens 840D SL # Liniar axis measuring device : Heindenhain liniar scales # CHIPS EXTRACTOR Knoll Type 550 K-1 # OIL COOLING SYSTEM # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : ELBARON Vario E2000 (2000m3/H) # OIL filtering system with paper filter max 80 Bar : Knoll KF200/1200 # Antifire: Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Control in process: Marposs T25 # Control tool breakage system BRK and length checker: inductive sensor # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) Machine status : NOT WORKING # Motor door loading unloading # Table A axis # Tool Magazine Chain # Safety switch Euchner loading door # Hydraulic switches 5 units ( Parker) # Pneumatic pistons for tool magazine access 2 units # Pneumatic pistons for tool clamping 2 units # Hydraulic system complete # Motor for Hydraulic motor ( can be also retrofited ) # Compressed air regulator # Chip conveyor extractor - need to be repaired # Liniar scale z axis # Liniar scale X axis # Numerical Control flash card # Communication modules Murr 4 units # 1 of 2 spindles broken - on stock to be installed

Condiție: bun (utilizat), Anul fabricației: 2015, Funcționalitate: complet funcțional, număr mașină/vehicul: 2460043, Technical characteristics: # Machining Workspace: X 300 mm; Y 500(725) mm; Z 375mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1 axel of rotation table A and 2 axis of rotation B with indexable divider head with direct measuring sistem angular with no of rev. 50minˉ¹ , precision +/- 5" # Max. dimension clamping / part : Ø 575 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 65/75/75 m/min , Position precision Tp : 0.008 mm # Distance between spindles: 300 mm Lhjdpfoxwvr Iox Ah Dep # Spindle speed 1-17500 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) # Automatic tool changer 2x32 tools / chip to chip medium 2.5 sec # Tool max.Ø75 mm / long. Max.275 mm / 7.5 kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 85 kVA / 125A Dimensions # installation space : aprox. 3.6 x 6 x 3.7 m # weight : aprox 10500 kg Equipment consist of: # CNC control : Siemens 840D SL # Liniar axis measuring device : Heindenhain liniar scales # CHIPS EXTRACTOR Knoll Type 550 K-1 # OIL COOLING SYSTEM # OIL filtering sistem max 80 Bar : Knoll 550 K-1 450_2450 (!!! Can serve 2 machines at once) # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : IFS Vario E2000 (2000m3/H) # Antifire : Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Control in process: Marposs T25 # Control tool breakage sistem BRK and length check: inductive sensor # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) # Documentation: Only books available Machine status : WORKING

Condiție: bun (utilizat), Anul fabricației: 2015, Funcționalitate: complet funcțional, număr mașină/vehicul: 2460042, Technical characteristics: # Machining Workspace: X 300 mm; Y 500(725) mm; Z 375mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1 axel of rotation table A and 2 axis of rotation B with indexable divider head with direct measuring sistem angular with no of rev. 50minˉ¹ , precision +/- 5" # Max. dimension clamping / part : Ø 575 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 65/75/75 m/min , Position precision Tp : 0.008 mm # Distance between spindles: 300 mm # Spindle speed 1-17500 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) # Automatic tool changer 2x32 tools / chip to chip medium 2.5 sec Lsdpfx Aexwvlnsh Djhp # Tool max.Ø75 mm / long. Max.275 mm / 7.5 kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 85 kVA / 125A Dimensions # installation space : aprox. 3.6 x 6 x 3.7 m # weight : aprox 10500 kg Equipment consist of: # CNC control : Siemens 840D SL # Liniar axis measuring device : Heidenhain liniar scales # CHIPS EXTRACTOR Knoll Type 550 K-1 # OIL COOLING SYSTEM # OIL filtering sistem max 80 Bar : Knoll 550 K-1 450_2450 (!!! Can serve 2 machines at once) # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : IFS Vario E2000 (2000m3/H) # Antifire : Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Control in process: Marposs T25 # Control tool breakage sistem BRK and length chequer: inductive sensor # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) # Documentation: Only books available Machine status : WORKING

Condiție: bun (utilizat), Anul fabricației: 2015, Funcționalitate: complet funcțional, număr mașină/vehicul: 15KX239200001, Technical characteristics: Work Area # Maximum turning diameter: 210 mm # Maximum machining diameter: 200 mm # Maximum workpiece length: 220 mm # X1/X2 - axis travel distance: 220 mm / Rapid speed in X: 24 m/min # Z1/Z2 -axis travel distance: 220/770 mm / Rapid speed in Z: 36 m/min # Y1/Y2-Axis travel distance: +/-40mm / Rapid speed in Z: 12 m/min Automatization: # Axis Stroke: X - 210 mm ; Y - 680 mm ; Z - Left 2080 mm / Right 3360 mm ; α 270˚ # Max speeds m/min : X - 35 ; Y - 120 mm ; Z - 160 mm ; α 270˚/1.5 sec # Specification of load / un load grippers (air pressure powered) : outer diameter - Ø170; jaw stroke 30mm ; gripping force : outside 128kgf / inside 138kgf Main Spindle # Spindle size : A8 # Maximum speed: Left 5000 rpm / Right 5000rpm # Power with 100% ED : Left -15 kW / Right 7.5 kW # Bar Capacity: left spindle - 65 mm / right spindle - no Tool Holder with Motorized Tools # Tool Interface: BMT55 # Number of position : 15 upper / 12 lower -station disc turret, all driven positions # Maximum speed: 4500 rpm, Milling motor power : 4.5 kW Electrical Equipment # Operating voltage: 200Vx3, fusible 151A # Connection power: 55 kVA Dimensions # Machine Dimensions (L×W×H): 3200 ×2200× 3500 mm # Weight : 10500 Kg Main Features and Capabilities: # horizontal Design: Optimal chip evacuation, loading/unloading by gantry from conveyors # Automatization consist of : Gantry robot + 2 loading unloading conveyors # CNC Control: Fanuc FS31i Model A Series # Chip extraction conveyor # Coolant filtration 40 bar max : Filber S.L. FTH5/10 200l/min # Control in process : Marposs T25 Lsdsxwuhujpfx Ah Dshp # Broken tool detection sistem : Peek tool menu Murata/Fanuc feature activated # Part detection throw spindle : Low pressure compressed air gauges. # Barr feeder interface max Ø65 mm # Documentation : Electronic available / Book available Machine status : WORKING

Condiție: necesită reparații (utilizat), Anul fabricației: 2009, Funcționalitate: nefuncțional, număr mașină/vehicul: 281-09, Technical characteristics: # Machining Workspace: X 550 mm; Y 400 mm; Z 360mm # Axis description: 3 LINIAR AXIS(X,Y,Z) + 1axel of rotation table A and 2 axis of rotation B with index divider head with direct measuring sistem angular with no of rev. 50minˉ¹ , precision +/- 5" # Axis A swivel : +/-110˚ # Max. dimension clamping / part : Ø 247 x 830 mm; weight max 360 Kg # Rapid speed : X/Y/Z 40/40/40 m/min , # Distance between Divider heads B1/B2 : 250 mm # Spindle speed 1-10000 rpm # Spindle nose: DIN69893-HSK-A63 (with internal refrigeration) # Automatic tool changer 1x48 tools / chip to chip medium 2.5 sec # Tool max.Ø82 mm / long. Max.250 mm / 5kg Electrical connection: # tension: 3x400V/50Hz # Power installed: aprox 45 kVA / 80A Dimensions # installation space : aprox. 4.4 x 2.3 x 3.1 m # weight : aprox 8500 kg Equipment consist of: # CNC control : Siemens 840D Power line # CHIPS EXTRACTOR Spring Knoll # OIL COOLING SYSTEM # OIL filtering sistem max 80 Bar : Knoll HL 450/1200 # SHAFT COOLING SYSTEM,GUIDES AND SWITCHBOARD # 2 OIL LUBRICATION SYSTEMS # OIL VAPOR ABSORPTION/RECOVERY SYSTEM : LTA AC3002 # Antifire : Kraft& Bauer # Part presence P/Y : with low pressure air detectors # Control in process: Marposs T25 # Control tool breakage : Blum Novotech Ledpjxwmvkjfx Ah Dehp # TOOL SUPPORT DETECTION SYSTEM IN THE WORK SHAFT(spindle) # Documentation: not complete Machine status : NOT WORKING # Leakage hidraulic oil Peiseler table # New hidraulic pump exist on stock

Condiție: necesită reparații (utilizat), Anul fabricației: 2008, Funcționalitate: nefuncțional, număr mașină/vehicul: 06-13633, Tcehnical characteristics: Work Area # Elevation: 160 mm # Minimum center distance between table axis and spindle: -30 mm # Maximum center distance between table axis and spindle: +150 mm # Minimum distance between table surface and cutter spindle: 275 mm # Maximum distance between table surface and cutter spindle: 345 mm # Manual transverse displacement of the column: ±20 mm # External diameter: 250 mm # Bore diameter: 100 H7 mm Work part # Maximum nominal module (in steel with a resistance of approximately 600 N/mm²): 3 mm # Minimum pitch diameter (internal gearing): 60 + d0s mm,where d0s is the external diameter of the cutter(in mm) # Maximum external diameter (internal gearing): 280 mm # Maximum width of the toothed band: 42 mm # Maximum stroke length for cutting teeth: 50 mm # Maximum spindle travel: 70 mm Load Capacity # Maximum weight supported by the table (including fixtures): 150 kg # Maximum force exerted by the tailstock: 1,500 kg Ledpoxwl Tzsfx Ah Djhp # Maximum obtainable helix angle (hydrostatic guide): ~45° Cutter Spindle # External diameter: 85 mm # Cutter holder bore: 45 H3 mm Electrical Equipment # Operating voltage: 400 - 480 V,Control voltage: 24 V,Magnetic voltage: 24 V,Cable section: 16 mm² Connected power: 15 kW, Protection: 50 A Dimensions # Total dimensions: Length=2980mm,Wide=1650 mm, Height=2165mm # Weight : 5700 Kg Main Features and Capabilities: # Vertical Design: Optimal chip evacuation and easy loading/unloading. # Control: Siemens Sinumerik 810D/840D # High Precision: Positioning accuracy by Heidenhain liniar scales # Measuring sistem by Marposs T25 ( for angular alignment or rotation 0 point definition ) . # Oil filtration and cooling sistem # Magnetic Chip extraction conveyor Machine status : NOT WORKING : NC do not start
